DIN vs Yoke Regulator Connection: Which Valve Type Should You Choose?

I've watched more than a few divers struggle with this decision in dive shops from Cozumel to Komodo, and I get it—the din vs yoke regulator question seems technical and maybe a little intimidating when you're still working on your buoyancy. But here's the truth: this choice affects your safety, your travel logistics, and how your regulator performs at depth. Whether you're buying your first reg or upgrading from rental gear, understanding these two valve connection systems will help you make a decision that matches your actual diving plans, not just what looks cool in the shop.

In this guide, I'll walk you through exactly what differentiates DIN from yoke connections, how to evaluate which system fits your diving style, and what you need to know before making the switch. We'll cover the mechanical differences, real-world performance considerations, and the practical realities of tank availability worldwide. By the end, you'll know which connection type deserves a spot in your gear bag.

Skill level needed: Beginner (no prior technical knowledge required)
Time to read: 12 minutes
Time to implement: Immediate (applies to your next regulator purchase or conversion)

What You'll Need

To make an informed decision about your regulator connection type, you should have:

• Your diving plans and goals (recreational vs technical, travel destinations, depth ranges)
• Knowledge of your local dive shop's rental tank inventory (call ahead and ask what valve types they stock)
• Your current regulator specs (if upgrading or converting)
• Budget awareness (DIN regulators typically run $25-75 more than yoke equivalents, plus conversion costs)
• Understanding of your certification level (recreational certifications vs technical training)

Optional but helpful:

• A conversation with your regular dive operator about their tank inventory
• Access to manufacturer specifications for regulators you're considering
• A DIN-to-yoke adapter or vice versa (if you want flexibility, typically $30-60)

Step 1: Understand How Each Connection System Actually Works

Let me start with the basics, because the mechanical difference between din vs yoke regulator connections matters more than most new divers realize.

A yoke connection (also called an A-clamp or INT system) uses a metal clamp that wraps over the tank valve pillar and tightens with a hand screw. The o-ring sits in a groove on the tank valve itself, and when you tighten the yoke screw, it presses the regulator inlet against that o-ring to create the seal. This system has been around since recreational diving began and remains the most common connection type worldwide, particularly in tropical resort destinations.

A DIN connection (Deutsches Institut für Normung, the German standards organization that created it) threads the regulator directly into the tank valve opening. The o-ring sits in a groove on the regulator first stage itself—not the tank valve—and as you hand-thread the DIN connector into the valve, it creates a captured seal inside the valve body. This design comes in two pressure ratings: 200-bar DIN (rated to approximately 3,000 PSI, with 5 threads) and 300-bar DIN (rated to approximately 4,500 PSI, with 7 threads). Most recreational DIN regulators use the 200-bar standard.

I've used both systems extensively, and here's what actually happens underwater: the DIN connection places the o-ring in a more protected position. On a yoke system, that o-ring sits exposed on the tank valve, where it's vulnerable to impact if you bump your first stage against a wreck or cave ceiling. I once had a yoke o-ring partially dislodge during a drift dive in Cozumel when my first stage contacted the reef—not a catastrophic failure, but definitely a reminder that the seal point is exposed. With DIN, that o-ring is recessed inside the valve body and captured between metal surfaces, making mechanical failure from impact significantly less likely.

Step 2: Evaluate Your Typical Diving Environment and Depth Range

Your actual diving habits should drive this decision more than abstract preferences or what your instructor uses.

For tropical vacation diving and recreational depths (0-100 feet), yoke connections work perfectly well and offer the significant advantage of universal availability. Every Caribbean resort, Southeast Asian dive shop, and Mediterranean operator I've visited in the past decade has predominantly yoke valves on their rental tanks. If you're diving 2-3 times per year on vacation and staying within recreational depth limits, a yoke regulator eliminates the hassle of adapters and special requests.

For cold water diving, deeper recreational diving, and technical training, DIN connections provide measurable advantages. The more secure connection becomes important when you're dealing with higher gas densities at depth, where even small leaks become more problematic. I've taught courses in 45-degree water in the Pacific Northwest, and when a yoke connection develops even a minor leak at depth, the escaping bubbles can freeze and cause the regulator to freeflow. The captured o-ring design in DIN systems reduces this risk significantly.

For technical diving and depths beyond 130 feet, DIN becomes essentially mandatory. The 300-bar DIN standard supports the higher fill pressures commonly used in technical diving (I regularly dive with tanks filled to 3,600 PSI or higher). Beyond the pressure rating, the more robust connection provides peace of mind when you're managing multiple stage bottles, long decompression obligations, and overhead environments where equipment reliability isn't optional.

Consider this real-world example: I've logged about 200 dives in Roatan, Honduras—quintessential Caribbean vacation diving—and literally every single resort tank had yoke valves. Then I spent two months diving in Norway and Finland, where every tank at every technical dive center had DIN valves. Your geographic diving reality matters more than theoretical performance advantages.

If you're genuinely unsure about your diving trajectory, here's my practical advice: start with a quality regulator system that matches where you are now, not where you might be in five years. You can convert or adapt later if your diving evolves.

Step 3: Assess Tank Valve Availability in Your Regular Dive Locations

This step requires actual research, not assumptions. Call or email the dive operators you use most frequently and ask a simple question: "What percentage of your rental tanks have DIN valves versus yoke valves?"

In my experience training divers and working with shops across six continents, here's the general pattern:

Yoke-dominant regions:

• Caribbean islands and Mexico (95%+ yoke)
• Southeast Asian resort destinations like Thailand, Philippines, Indonesia (90%+ yoke)
• Mediterranean tourist areas (80%+ yoke)
• Australian Great Barrier Reef operators (85%+ yoke)
• Beginner-focused dive centers globally

DIN-dominant or DIN-friendly regions:

• European cave and wreck diving sites (80%+ DIN)
• Cold water technical diving locations (Great Lakes, Scandinavia, Pacific Northwest)
• Purpose-built technical diving operations anywhere
• South African and Red Sea technical dive centers

Mixed availability:

• Florida cave country (most operators stock both)
• Southern California (larger shops maintain both)
• UK and Ireland diving (transitional, increasingly DIN)

Here's what the manufacturer claims about adapters solving this problem... and here's what actually happens at depth: yes, you can use a DIN-to-yoke adapter that threads onto your DIN regulator, allowing it to connect to yoke valves. I carry one when I travel to yoke-dominant regions with my DIN regulators. They work, but they add a failure point, increase the profile of your first stage (making it more likely to bump into things), and occasionally cause confusion with less-experienced divemasters who aren't familiar with them.

Conversely, you can install a yoke-to-DIN conversion kit on many tank valves, but good luck finding a resort willing to modify their rental tanks for your convenience. Some technical divers travel with their own DIN valve inserts, but this requires compatible valve types and creates logistics headaches.

The bottom line: if you're diving in DIN-dominant areas or own your own tanks, DIN makes perfect sense. If you're a vacation diver who rents equipment, forcing yourself to use adapters on every dive gets old fast.

Step 4: Consider Your Future Diving Aspirations and Training Path

I remember clearly when I was a newly certified Open Water diver convinced I'd never need anything beyond basic recreational equipment. Fast forward three years, and I was enrolled in my first technical diving course, wishing I'd made different gear choices from the start.

Be honest with yourself about these questions:

Are you interested in wreck penetration, cave diving, or deep diving beyond 100 feet? These disciplines strongly favor or require DIN connections. Every cold water regulator designed for serious technical diving comes standard with DIN fittings because the performance advantages matter when you're 200 feet inside a shipwreck with mandatory decompression obligations.

Do you plan to pursue professional dive training (Divemaster, Instructor)? Working dive professionals benefit from DIN's reliability because you're making hundreds of dives per year, often in varying conditions. That said, if you'll be teaching predominantly at tropical resorts, yoke compatibility with the rental fleet may matter more.

Are you building a long-term equipment set, or buying your first regulator to supplement rentals? If you're investing in a high-end regulator that you plan to use for a decade, choosing the connection type that matches your five-year diving vision makes more sense than optimizing for tomorrow's shore dive.

What's your home diving environment? If you live in Florida, California, or anywhere with an active technical diving community, local tank availability probably includes plenty of DIN options. If you're landlocked and travel exclusively to Caribbean resorts, that calculation changes.

I've watched divers spend $800 on a high-performance regulator with a yoke connection because "that's what my instructor recommended," only to convert it to DIN a year later when they discovered technical diving. That conversion typically costs $150-200 and requires sending the regulator to a service center. Just food for thought.

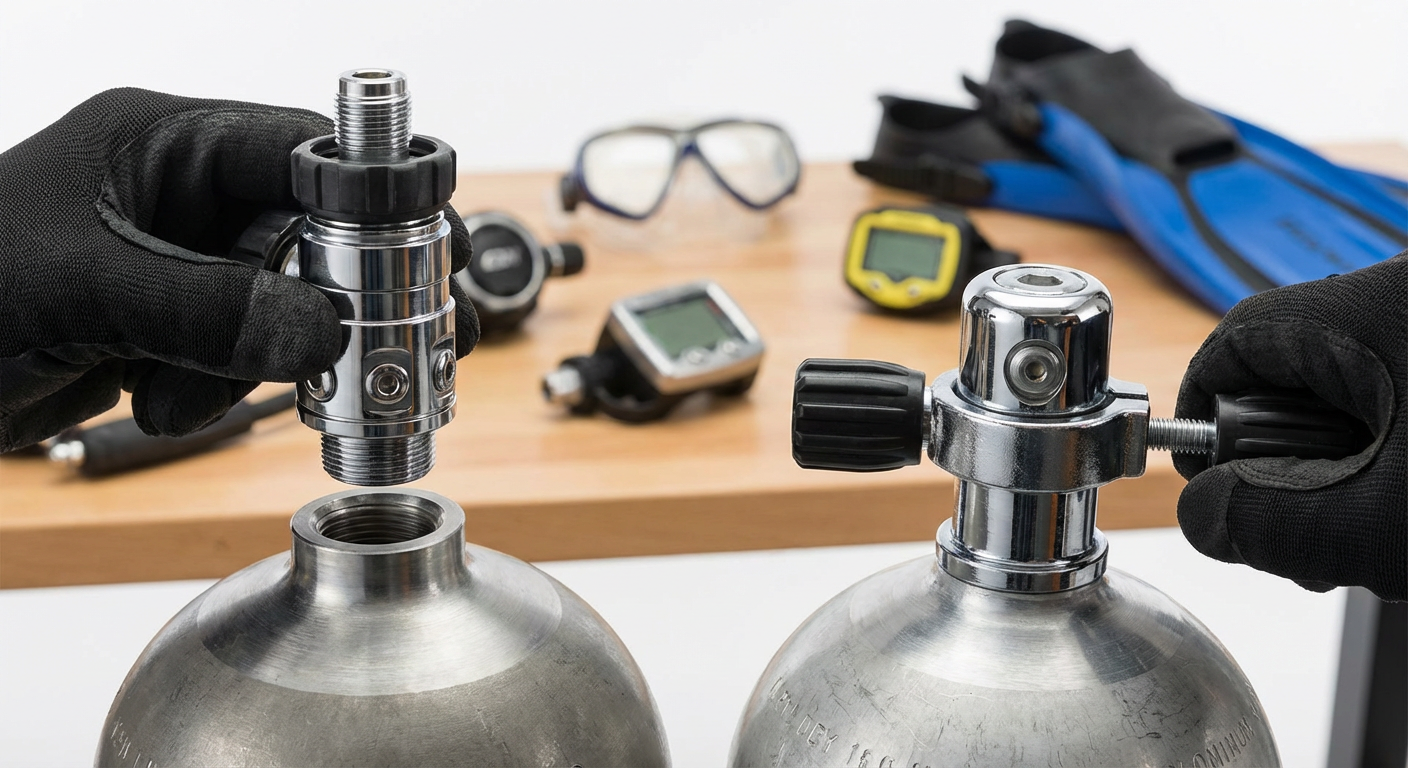

Step 5: Understand the Practical Differences in Installation and Use

The din vs yoke regulator debate isn't just about performance—it's about the actual experience of assembling your gear before every dive.

Installing a yoke regulator:

1. Position the yoke clamp over the tank valve pillar
2. Hand-tighten the yoke screw until snug (finger-tight plus about a quarter turn)
3. Total time: 5-10 seconds
4. Tools needed: None

This simplicity explains why yoke connections dominate beginner-focused operations. I've watched divers with limited hand strength or dexterity struggle with other equipment, but virtually everyone can tighten a yoke screw. The visual confirmation that it's properly seated (you can see the clamp wrapped around the valve) provides psychological comfort for newer divers.

Installing a DIN regulator:

1. Align the regulator inlet with the tank valve opening
2. Hand-thread the DIN connector clockwise into the valve (5-7 full rotations depending on pressure rating)
3. Tighten until you feel firm resistance (hand-tight, no tools)
4. Total time: 10-15 seconds
5. Tools needed: None

The threading process requires a bit more attention—you need to start the threads straight to avoid cross-threading. I've seen rushed divers cross-thread DIN connections, which can damage both the regulator and valve threads. However, once you've done it a dozen times, it becomes second nature and actually feels more secure than yoke installations because you can feel the engagement of multiple threads.

The practical reality: DIN connections take slightly longer to install and require more care, but provide a more positive, secure feeling once properly threaded. Yoke connections are faster and more intuitive for beginners but require checking that the o-ring is properly seated (I always visually inspect the tank valve o-ring before mounting a yoke regulator—it's exposed and can be damaged or missing).

One often-overlooked advantage of DIN: you control the o-ring. With yoke, you're trusting that the rental tank has a good o-ring in place. I've aborted dives because rental tank o-rings were damaged, extruded, or missing entirely. With DIN, the o-ring lives on your regulator, where you maintain it according to proper service schedules.

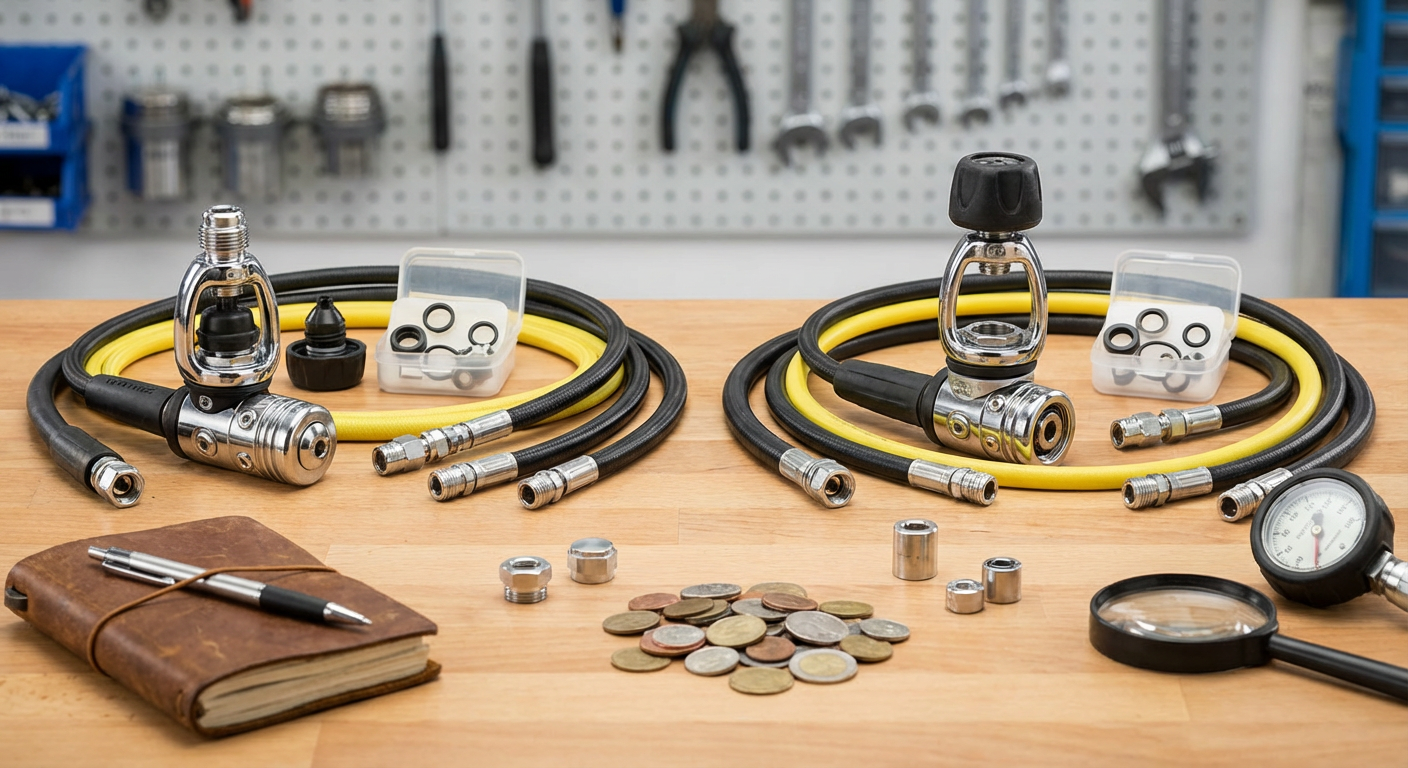

Step 6: Calculate the Real Costs of Each Option

Let's talk money, because the price difference between din vs yoke regulator systems affects your budget in several ways.

Initial purchase price difference:

• Entry-level regulators: DIN versions typically cost $25-50 more than yoke equivalents
• Mid-range regulators: DIN versions typically cost $40-75 more
• High-end regulators: Price difference narrows to $30-50 (DIN becomes standard at this level)

For example, a popular beginner regulator might retail at $399 for yoke, $439 for DIN. At the high end, many manufacturers offer DIN as standard with a free yoke conversion kit included.

Conversion costs (if you change your mind later):

• Yoke-to-DIN conversion kit: $120-180 parts, plus $50-80 labor
• DIN-to-yoke conversion kit: $80-120 parts, plus $50-80 labor
• Total conversion cost: $170-260 depending on regulator model and service center

Adapter costs (if you want flexibility):

• DIN-to-yoke adapter: $30-60 (allows DIN reg to connect to yoke valve)
• Yoke-to-DIN adapter (valve insert): $40-70 (converts yoke valve to accept DIN reg)

Long-term value consideration: DIN regulators typically hold resale value slightly better in the used market, particularly for high-end and technical diving models. If you decide technical diving isn't for you, selling a DIN regulator to the tech diving community is generally easier than finding buyers for technical-capable yoke regulators.

My practical recommendation: if the price difference is less than $50 and you have any interest in advancing beyond basic recreational diving, choose DIN. If the price difference is $100+ and you're honestly a vacation diver who values simplicity and universal compatibility, yoke makes perfect sense. Don't let anyone make you feel like you're choosing inferior equipment by selecting yoke for the right reasons.

Step 7: Make Your Decision Based on Your Actual Diving Profile

Now that you understand the technical differences, availability issues, and cost factors, here's how to make a decision that actually fits your diving life:

Choose yoke if:

• You dive primarily on tropical vacations at resorts
• You're buying your first regulator and staying within recreational limits
• You value simplicity and universal tank compatibility
• Your local dive shop predominantly rents yoke-valve tanks
• You have no near-term interest in technical diving training
• You want the lowest initial cost

Choose DIN if:

• You're pursuing or planning technical diving training
• You regularly dive in cold water or below 100 feet
• You own your own tanks (you can choose valve types)
• Your local diving community is technical-oriented with DIN tank availability
• You want the most secure connection and recessed o-ring protection
• You're buying a high-end regulator as a long-term investment

Choose DIN with an adapter if:

• You dive locally in DIN-dominant areas but travel to yoke-dominant destinations
• You want the technical advantages of DIN but need occasional yoke compatibility
• You're willing to carry an extra piece of equipment and add setup time

Choose yoke with plans to convert later if:

• You're unsure about your diving trajectory
• You want to start with lower cost and simpler operation
• You'll likely pursue advanced training within 1-2 years
• Your regulator model has readily available conversion kits

I personally dive DIN regulators exclusively now because my diving centers around cold water, wrecks, and technical profiles. But I dove yoke regulators happily for my first five years of diving, when I was primarily a Caribbean vacation diver. Neither choice is wrong—just make sure it matches where you actually dive, not where you fantasize about diving.

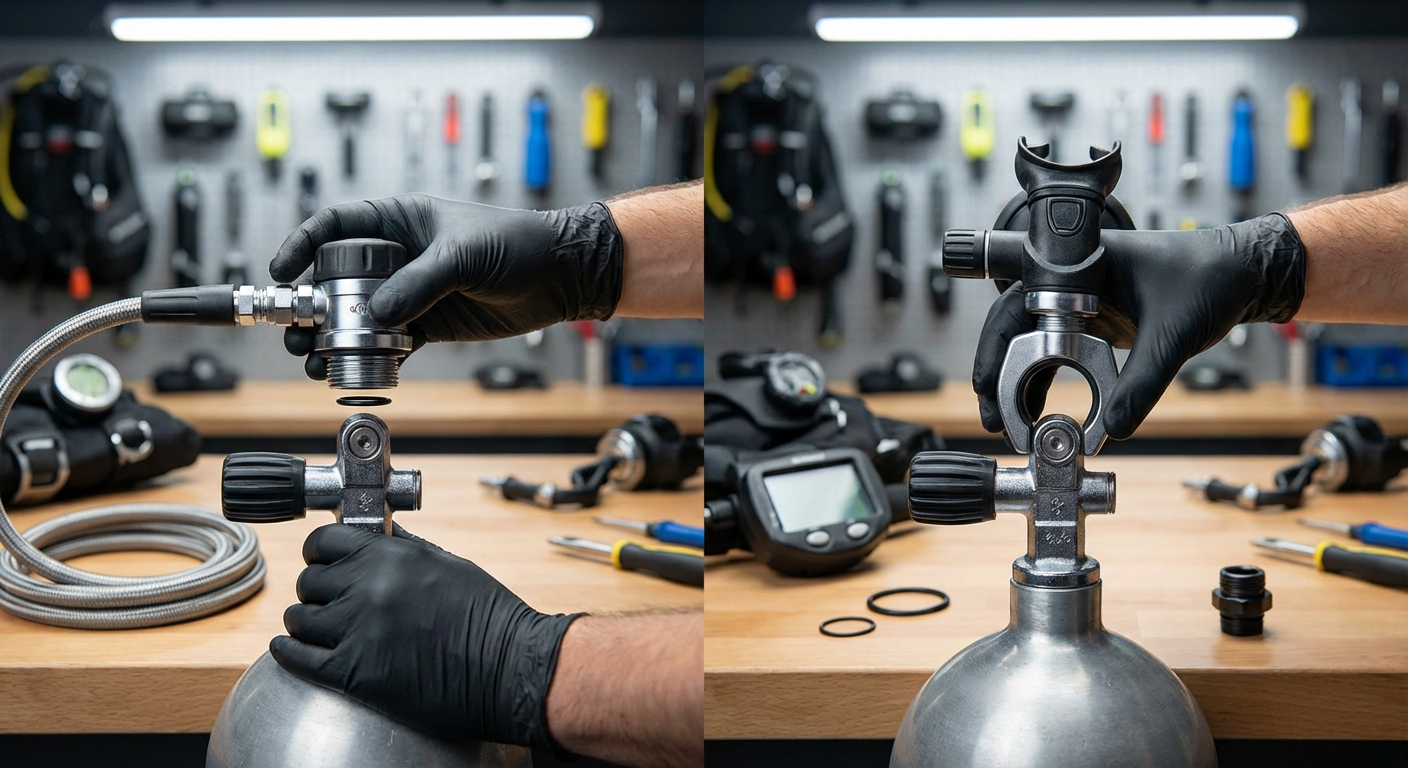

Pro Tips & Common Mistakes

Pro tips from 3,000+ dives:

Always carry spare o-rings for your connection type. For DIN regulators, this means carrying 2-3 spare o-rings sized for your first stage (typically 2-010 Buna-N). For yoke, carry tank valve o-rings (typically 2-012 or 2-014). I've saved more than a few dives—mine and other divers'—by having the right o-ring in my save-a-dive kit.

If using a DIN-to-yoke adapter, apply a tiny amount of silicone grease to the adapter threads (not the sealing surfaces) to ensure smooth installation and removal. Adapters can corrode into place in saltwater environments if you're not careful with rinsing and occasional maintenance.

Don't over-tighten either connection type. Both yoke and DIN connections seal with o-ring compression, not thread torque. Hand-tight is sufficient. I've seen divers use tools to over-tighten yoke screws, which damages the tank valve pillar and makes removal difficult. For DIN, stop when you feel firm resistance—you're not trying to prove your grip strength.

Common mistakes to avoid:

Assuming all DIN is the same. The 200-bar (5-thread) and 300-bar (7-thread) DIN standards are different. A 300-bar DIN regulator will thread into a 200-bar valve, but only the first 5 threads engage—this works but isn't ideal. A 200-bar DIN regulator won't fully thread into a 300-bar valve, leaving it protruding dangerously. Always know which DIN standard your regulator uses and match it to appropriate valves.

Forgetting to check o-ring condition before installation. This is particularly critical with yoke connections where the o-ring lives on the tank valve. I do a visual and tactile inspection of every tank valve o-ring before installing my yoke regulator—looking for cracks, flat spots, extrusion, or debris. A damaged o-ring can cause anything from a minor leak to a catastrophic failure.

Assuming DIN is inherently "better" regardless of context. I've met technical diving enthusiasts who insist DIN is superior in all situations, but if you're making 20 vacation dives per year in Bonaire, the practical advantages don't outweigh the convenience disadvantage. Choose based on your reality, not diving tribalism.

Cross-threading DIN connections by rushing. Take the extra three seconds to start the threads carefully and ensure they're engaging smoothly. Cross-threaded regulators and valves require expensive machining repairs or replacement. If you feel unusual resistance when threading a DIN connection, back it out and start again.

Frequently Asked Questions

Can I convert my yoke regulator to DIN later if I want to?

Yes, most modern regulators can be converted between yoke and DIN using manufacturer-specific conversion kits that typically cost $120-180 plus installation labor. The conversion replaces the connection hardware on your first stage and requires professional service by a qualified technician. However, not all older regulator models have conversion options available, so check with your manufacturer before purchasing if you think you might convert later. The process takes about an hour in a service center and should be combined with your regular regulator service interval for cost efficiency.

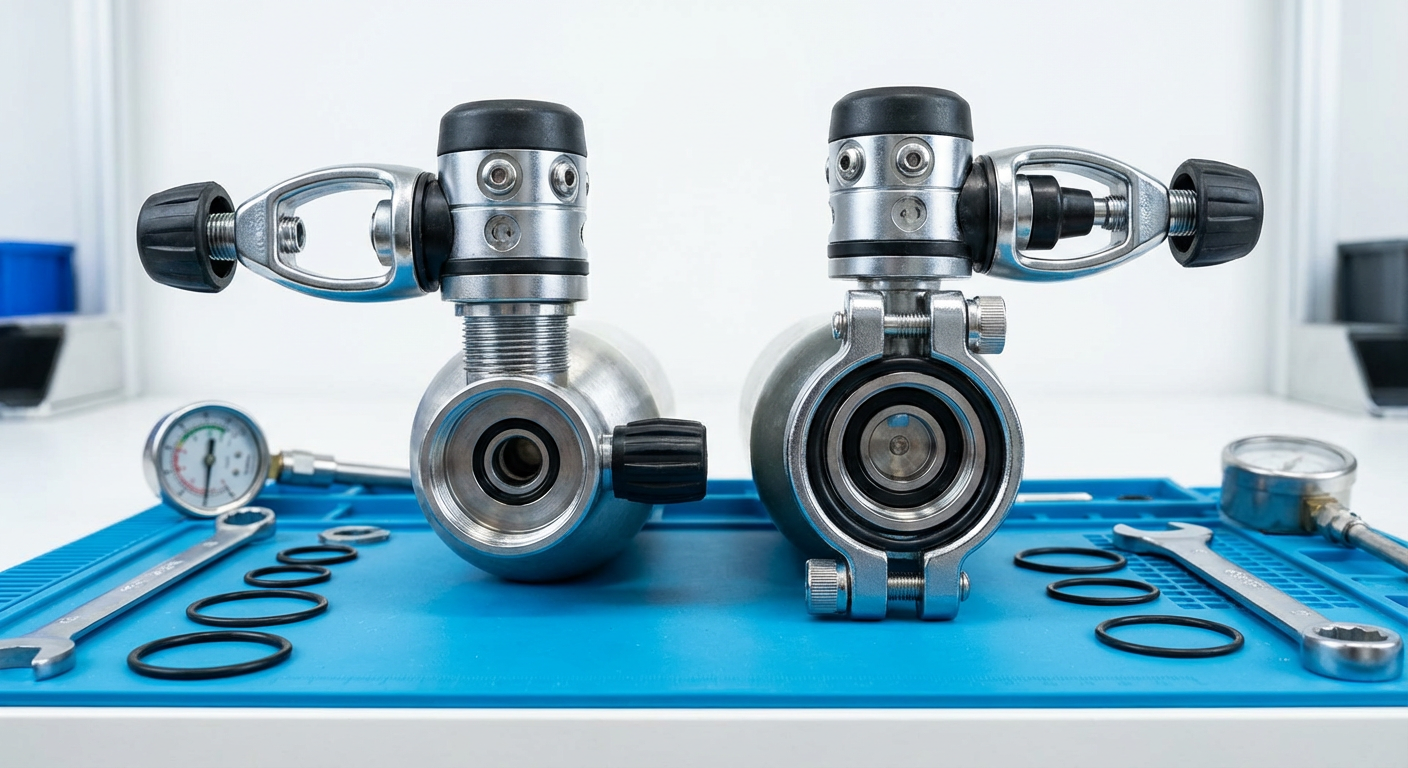

Are DIN connections really safer than yoke connections?

DIN connections provide marginal safety advantages through a more secure, captured o-ring design that's less vulnerable to impact damage and dislodgement compared to the exposed o-ring position on yoke valves. The threaded engagement also creates a more positive lock that's less likely to separate under stress. However, both connection types have excellent safety records when properly maintained and installed—the vast majority of recreational diving worldwide happens safely on yoke connections. The safety difference becomes more relevant in technical diving scenarios involving higher pressures, extreme environments, and depths where equipment redundancy and reliability are critical.

Do DIN regulators perform better than yoke regulators at depth?

No, the connection type doesn't directly affect regulator breathing performance, intermediate pressure delivery, or air consumption. Both DIN and yoke connections simply provide the high-pressure seal between your tank and first stage—what happens after that depends entirely on your regulator's internal design, balancing system, and adjustment characteristics. The performance advantage of DIN is about connection security and o-ring protection, not breathing effort or gas delivery. You can find high-performing and poorly-performing regulators with both connection types.

What happens if I show up at a dive shop with a DIN regulator and they only have yoke valves?

You have three options: use a DIN-to-yoke adapter (a threaded sleeve that converts your DIN connection to interface with yoke valves, which costs $30-60 and should be part of your kit if you travel with DIN regulators); request that the dive shop install DIN valve inserts in their tanks (some technical-friendly shops maintain these, but most resort operations won't accommodate this); or rent a complete regulator setup from the dive shop. I always travel with a DIN-to-yoke adapter when visiting yoke-dominant regions—it solves the problem in about 30 seconds, though it does add bulk to your first stage and creates an additional connection point to maintain.

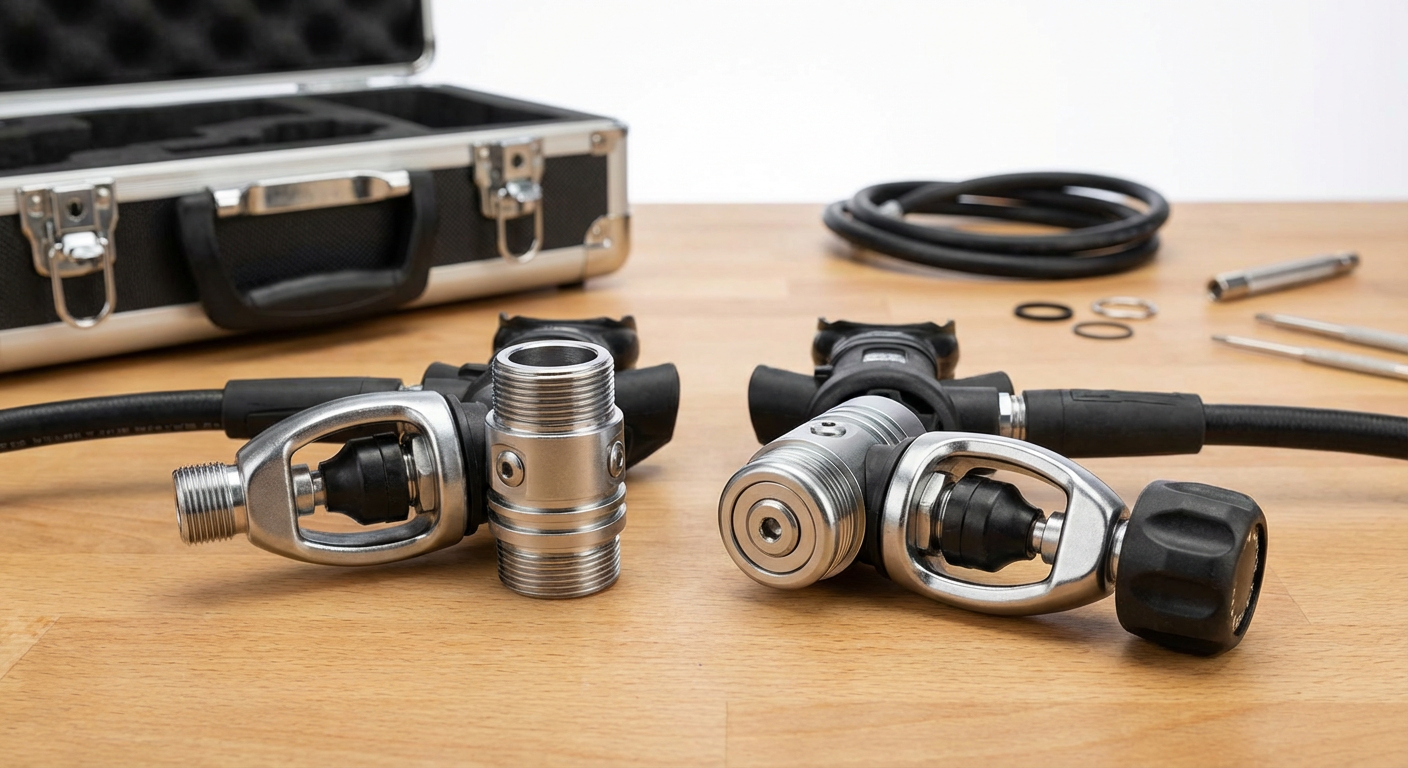

Summary

The din vs yoke regulator question ultimately comes down to honest self-assessment of your diving patterns, aspirations, and typical environments. Yoke connections offer simplicity, universal availability, and lower initial costs—they're the practical choice for recreational vacation divers and beginners building their first equipment set. DIN connections provide superior security, protected o-ring positioning, and higher pressure ratings that matter for technical diving, cold water use, and depths beyond recreational limits.

Neither system is universally superior—context determines the right choice. A DIN regulator with an adapter provides maximum flexibility if you dive in varied locations. A yoke regulator gets you diving everywhere with zero complications. Make your decision based on where you actually dive most frequently, not on theoretical advantages or what seems more "professional."

Remember that you're choosing a connection type, not defining your diving identity. Your actual skills, training, and experience underwater matter infinitely more than whether you twist or clamp your regulator onto the tank. Choose what works for your diving reality, maintain it properly, and focus your energy on becoming a better diver regardless of which threads or clamps you're using.
